D1005-E2-BG - Altınboğa

DIESEL

D1005-E2-BG

Rated Power (kW): 9.8
Speed (rpm): 1800
Emission: EPA Tier 2, CARB Tier 2
Kubota BG Series

Features

Engine Model	D1005-E2-BG
Emission Regulation	EPA/CARB Tier 2 level
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	3
Bore and Stroke mm (in)	76.0 x 73.6 (2.99 x 2.90)
Displacement L (cu.in.)	1.001 (61.08)
Aspiration	Naturally aspirated
Aftertreatment	-
Stand-by output / speed^*1 kW (HP) / rpm	9.8 (13.1) / 1800
Continuous output / speed^*2 kW (HP) / rpm	8.7 (11.7) / 1800
Combustion System	Indirect injection
Fuel System	In-line pump

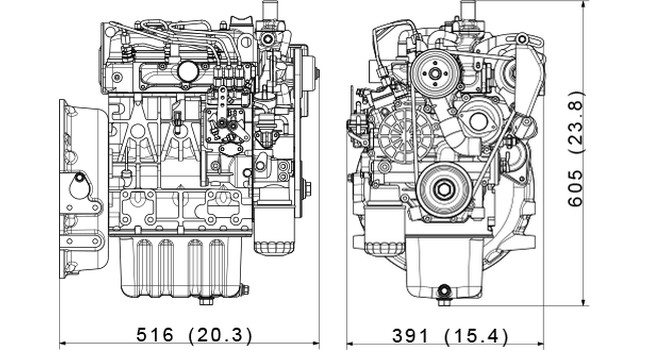

Length x Width x Height^*3 (Without Aftertreatment Unit) mm (in)	516 x 391 x 605 (20.3 x 15.4 x 23.8)
Length x Width x Height^*4 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	110 (243)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1349 net stand-by
*2: SAE J1349 net continuous
*3: Exclude cooling fan and exclude aftertreatment unit
*4: Exclude cooling fan and include aftertreatment unit on engine
