D1105-E4-BG2 - Altınboğa

DIESEL

D1105-E4-BG2

Rated Power (kW): 9.5
Speed (rpm): 1500
Emission: EU Stage V
Kubota BG Series

Features

Engine Model	D1105-E4-BG2
Emission Regulation	EU Stage V
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	3
Bore and Stroke mm (in)	78.0 x 78.4 (3.07 x 3.09)
Displacement L (cu.in.)	1.123 (68.53)
Aspiration	Naturally aspirated
Aftertreatment	-
Stand-by output / speed^*1 kW (HP) / rpm	9.5 (12.7) / 1500
Continuous output / speed^*2 kW (HP) / rpm	8.4 (11.3) / 1500
Combustion System	Indirect injection
Fuel System	In-line pump

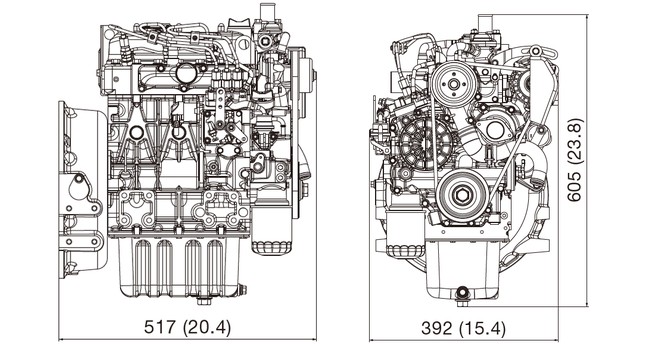

Length x Width x Height^*3 (Without Aftertreatment Unit) mm (in)	517 × 392 × 605 (20.4 × 15.4 × 23.8)
Length x Width x Height^*4 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	110 (243)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1349 net stand-by
*2: SAE J1349 net continuous
*3: Exclude cooling fan and exclude aftertreatment unit
*4: Exclude cooling fan and include aftertreatment unit on engine
