V2403-M-E2B - Altınboğa

DIESEL

V2403-M-E2B

Rated Power (kW): 38.0
Speed (rpm): 2600
Emission: EPA Tier 2, CARB Tier 2, EU Stage II
Kubota 03 Series

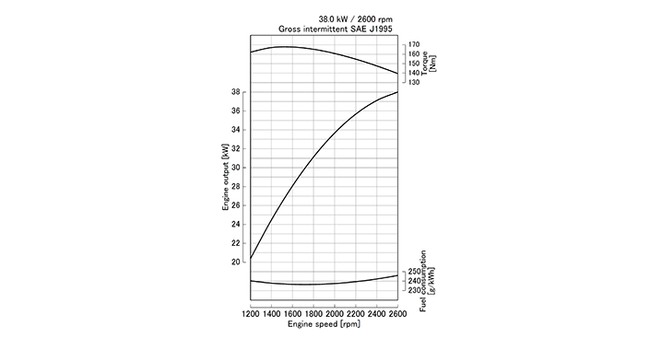

Performance Curves

Features

Engine Model	V2403-M-E2B
Emission Regulation	EPA/CARB Tier 2 level + EU Stage II level
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and Stroke mm (in)	87.0 x 102.4 (3.43 x 4.031)
Displacement L (cu.in.)	2.434 (148.5)
Aspiration	Naturally aspirated
Aftertreatment	-
Rated Output / Speed^*1 kW (HP) / rpm	38.0 (51.0) / 2600
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	167.6 (123.6) / 1600
Combustion System	Indirect injection
Fuel System	In-line pump
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	646 x 495 x 684 (25.4 x 19.5 x 26.9)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	184 (406)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine

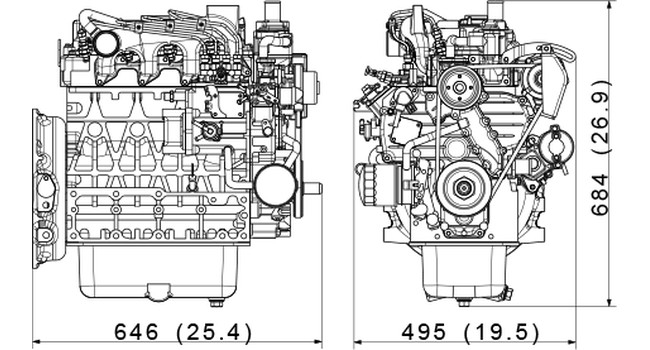

Dimensions
