V3307-CR-TI-E5 - Altınboğa | Albo Marin

DIESEL

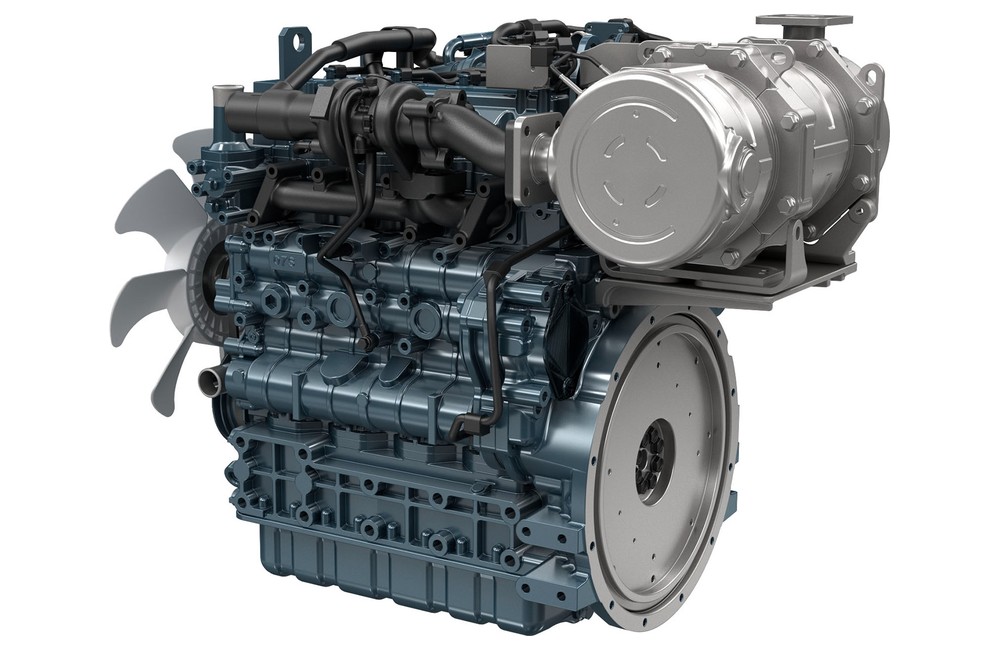

V3307-CR-TI-E5

V3307-CR-TI-E5

Rated Power (kW): 55.4
Speed (rpm): 2600
Emission: EPA Tier 4, CARB Tier 4, EU Stage V, India BS V
Kubota 07 Series

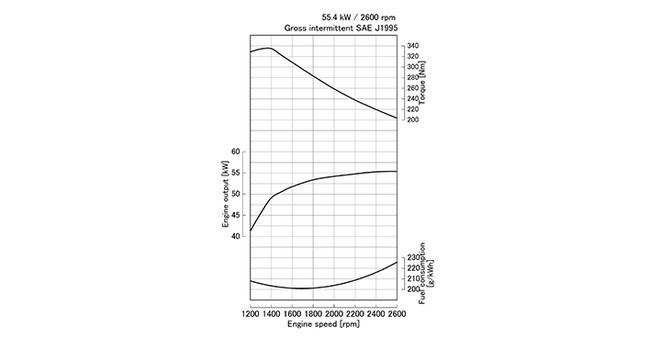

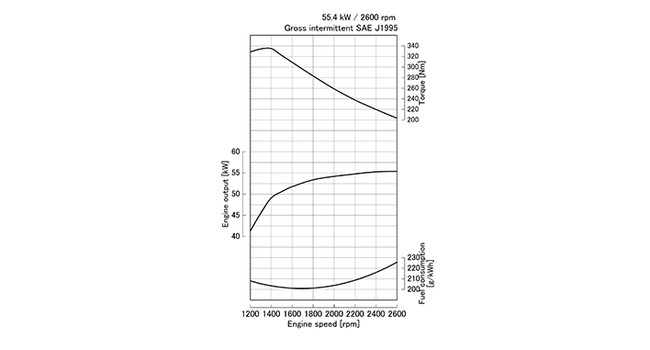

Performance Curves

V3307-CR-TI-E5

Features

Engine Model	V3307-CR-TI-E5
Emission Regulation	EPA/CARB Tier4 + EU Stage V + India BS V
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and Stroke mm (in)	94.0 x 120.0 (3.70 x 4.724)
Displacement L (cu.in.)	3.331 (203.3)
Aspiration	Turbocharged + Turbo After Cooler
Aftertreatment	DOC + DPF
Rated Output / Speed^*1 kW (HP) / rpm	55.4 (74.3) / 2600
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	335.0 (247.1) / 1600
Combustion System	Direct Injection
Fuel System	Common rail system
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	655 x 557 x 730 (25.8 x 21.9 x 28.7)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	856 x 557 x 749 (33.7 x 21.9 x 29.5)
Dry Weight kg (lb)	299 (659)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: Gross intermittent SAE J1995
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit

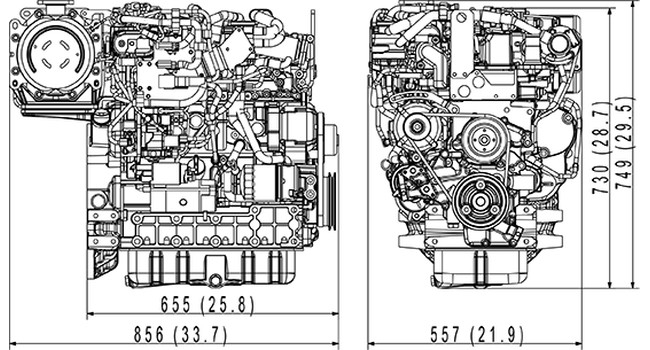

Dimensions

V3307-CR-TI-E5
