D722-E3 - Altınboğa

DIESEL

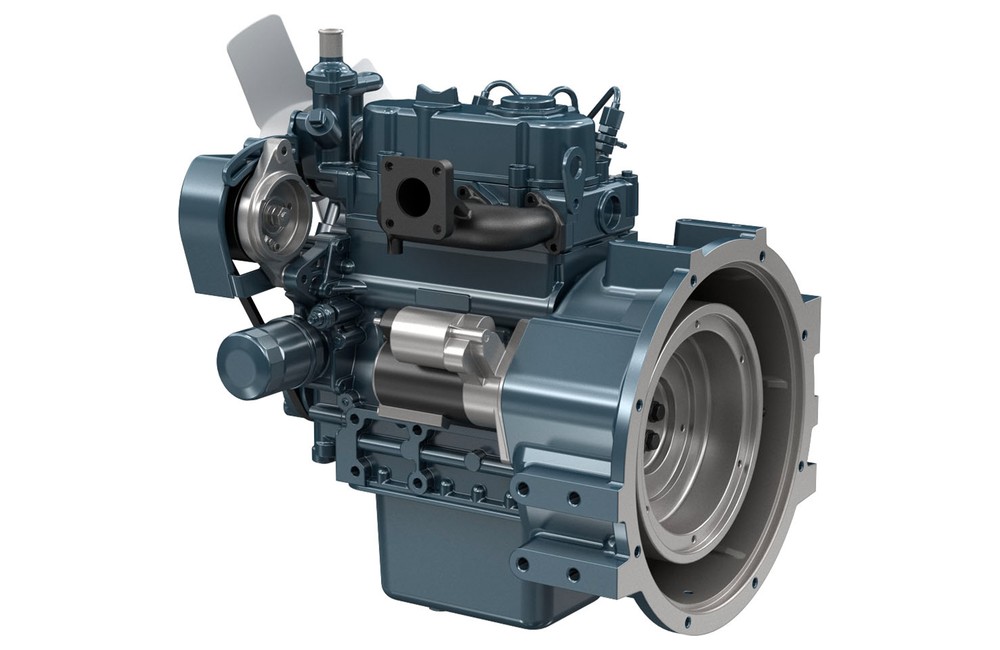

D722-E3

Rated Power (kW): 13.3
Speed (rpm): 3600
Emission: EPA Tier 4, CARB Tier 4
Kubota BG Series

Features

Engine Model	D722-E3
Emission Regulation	EPA/CARB Tier 4 level
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	3
Bore and Stroke mm (in)	67.0 x 68.0 (2.64 x 2.68)
Displacement L (cu.in.)	0.719 (43.88)
Aspiration	Naturally aspirated
Aftertreatment	-
Stand-by output / speed^*1 kW (HP) / rpm	13.3 (17.8) / 3600
Continuous output / speed^*2 kW (HP) / rpm	12.2 (16.4) / 3600
Combustion System	Indirect injection
Fuel System	In-line pump

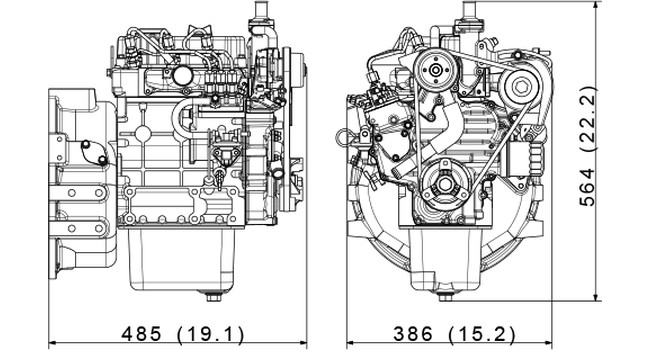

Length x Width x Height^*3 (Without Aftertreatment Unit) mm (in)	485 x 386 x 564 (19.1 x 15.2 x 22.2)
Length x Width x Height^*4 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	88 (194)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1349 net stand-by
*2: SAE J1349 net continuous
*3: Exclude cooling fan and exclude aftertreatment unit
*4: Exclude cooling fan and include aftertreatment unit on engine
