V1505-E4-BG2 - Altınboğa

DIESEL

V1505-E4-BG2

Rated Power (kW): 12.5
Speed (rpm): 1500
Emission: EU Stage V
Kubota BG Series

Features

Engine Model	V1505-E4-BG2
Emission Regulation	EU Stage V
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and Stroke mm (in)	-
Displacement L (cu.in.)	-
Aspiration	Naturally aspirated
Aftertreatment	-
Stand-by output / speed^*1 kW (HP) / rpm	12.5 (16.8) / 1500
Continuous output / speed^*2 kW (HP) / rpm	11.1 (14.9) / 1500
Combustion System	Indirect injection
Fuel System	In-line pump

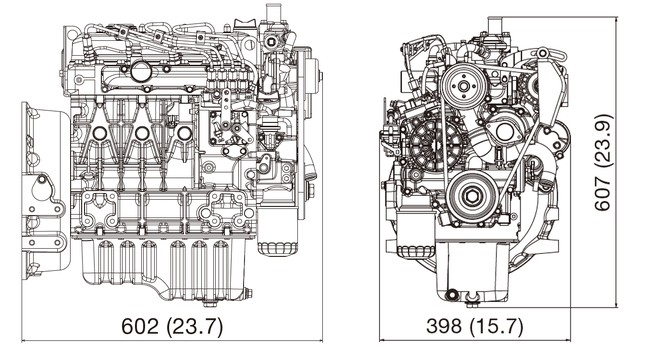

Length x Width x Height^*3 (Without Aftertreatment Unit) mm (in)	602 x 398 x 607 (23.7 x 15.7 x 23.9)
Length x Width x Height^*4 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	127 (280)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1349 net stand-by
*2: SAE J1349 net continuous
*3: Exclude cooling fan and exclude aftertreatment unit
*4: Exclude cooling fan and include aftertreatment unit on engine
