D1503-M-E4-BG - Altınboğa

DIESEL

D1503-M-E4-BG

Rated Power (kW): 16.2
Speed (rpm): 1800
Emission: EPA Tier 4, CARB Tier 4
Kubota BG Series

Features

Engine Model	D1503-M-E4-BG
Emission Regulation	EPA/CARB Tier 4 (NRTC/NTE test mode)
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	3
Bore and Stroke mm (in)	83.0 x 92.4 (3.27 x 3.64)
Displacement L (cu.in.)	1.499 (91.47)
Aspiration	Naturally aspirated
Aftertreatment	-
Stand-by output / speed^*1 kW (HP) / rpm	16.2 (21.7) / 1800
Continuous output / speed^*2 kW (HP) / rpm	15.1 (20.2) / 1800
Combustion System	Indirect injection
Fuel System	In-line pump

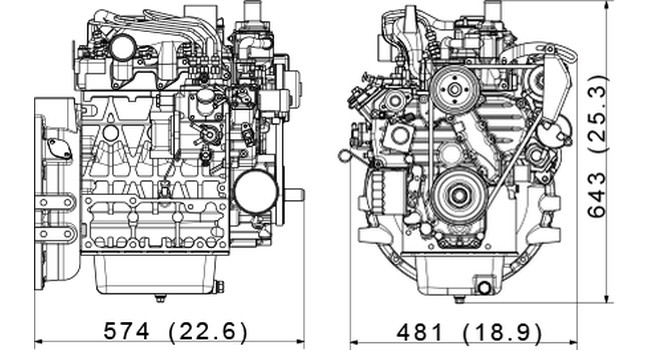

Length x Width x Height^*3 (Without Aftertreatment Unit) mm (in)	574 x 481 x 643 (22.6 x 18.9 x 25.3)
Length x Width x Height^*4 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	170 (374)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1349 net stand-by
*2: SAE J1349 net continuous
*3: Exclude cooling fan and exclude aftertreatment unit
*4: Exclude cooling fan and include aftertreatment unit on engine
