V1505-E2-BG - Altınboğa

DIESEL

V1505-E2-BG

Rated Power (kW): 15.1
Speed (rpm): 1800
Emission: EPA Tier 2, CARB Tier 2
Kubota BG Series

Features

Engine Model	V1505-E2-BG
Emission Regulation	EPA/CARB Tier 2 level
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and Stroke mm (in)	78.0 x 78.4 (3.07 x 3.09)
Displacement L (cu.in.)	1.498 (91.41)
Aspiration	Naturally aspirated
Aftertreatment	-
Stand-by output / speed^*1 kW (HP) / rpm	15.1 (20.2) / 1800
Continuous output / speed^*2 kW (HP) / rpm	13.4 (18.0) / 1800
Combustion System	Indirect injection
Fuel System	In-line pump

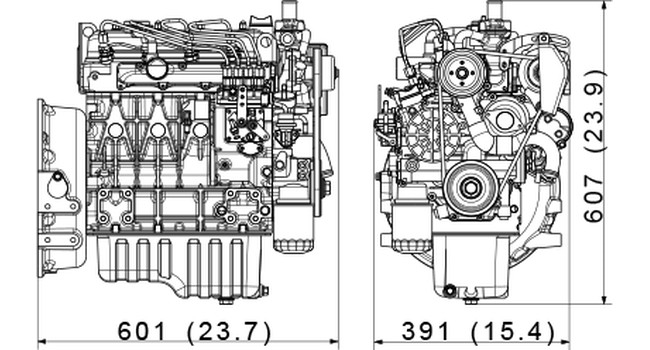

Length x Width x Height^*3 (Without Aftertreatment Unit) mm (in)	601 x 391 x 607 (23.7 x 15.4 x 23.9)
Length x Width x Height^*4 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	127 (280)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1349 net stand-by
*2: SAE J1349 net continuous
*3: Exclude cooling fan and exclude aftertreatment unit
*4: Exclude cooling fan and include aftertreatment unit on engine
