OC60-E4 - Altınboğa | Albo Marin

DIESEL

OC60-E4

OC60-E4

Rated Power (kW): 4.5
Speed (rpm): 3600
Emission: EPA Tier 4, CARB Tier 4, EU Stage V
Kubota OC Series

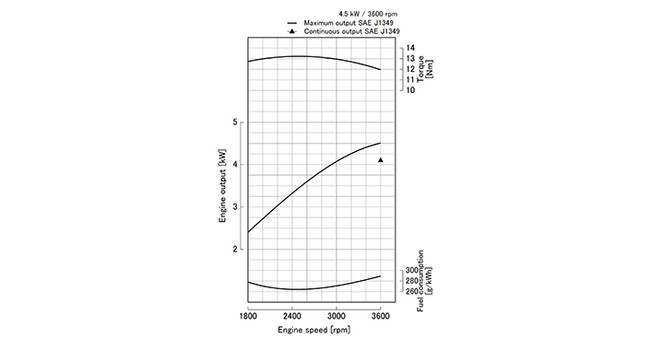

Performance Curves

OC60-E4

Features

Engine Model	OC60-E4
Emission Regulation	EPA/CARB Tier 4 (NRTC/NTE test mode) + EU Stage V
Type	Vertical, liquid-cooled 4-cycle diesel engine
Cylinders	1
Bore and Stroke mm (in)	72.0 x 68.0 (2.83 x 2.68)
Displacement L (cu.in.)	0.276 (16.8)
Maximum output / speed^*1 Nm (lb-ft) / rpm	4.5 (6.0) / 3600
Continuous output / speed^*1 kW (HP) / rpm	4.1 (5.5) / 3600
Maximum Torque / Speed Nm (lb-ft) / rpm	13.2 (9.7) / 2000 to 2600
Combustion System	Indirect Injection
Fuel tank capacity L (U.S. gal)	3.5 (0.92)
Lubricating oil capacity L (U.S. gal)	1.3 (0.34)
Starter capacity V - kW	12 - 0.7
Charging dynamo V - W	12 - 48 (L1 model: 12 - 170)
Length x Width x Height mm (in)	403 x 461 x 458 (15.9 x 18.1 x 18.0)
Dry Weight^*2 kg (lb)	38 (84)

Specifications are subject to change without notice.

Dry weight is according to Kubota's standard specification.

When specification varies, the weight will vary accordingly.

*1: SAE J1349 net intermittent
*2: Three Vortex Combustion System(TVCS)

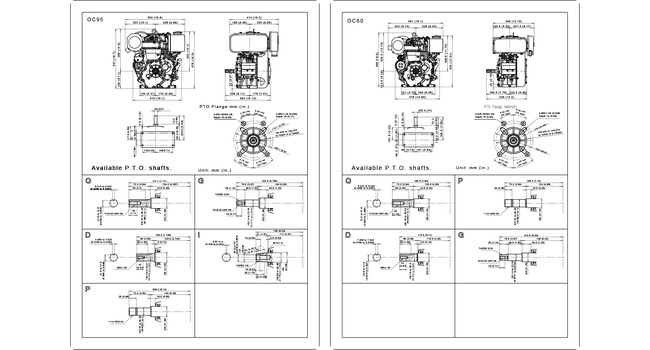

Dimensions

OC60-E4
