DIESEL

V2403-CR-TI-E4B

Rated Power (kW): 48.6
Speed (rpm): 2700
Emission: EPA Tier 4, CARB Tier 4, EU Stage IIIB, EU Stage V
Kubota 03 Series

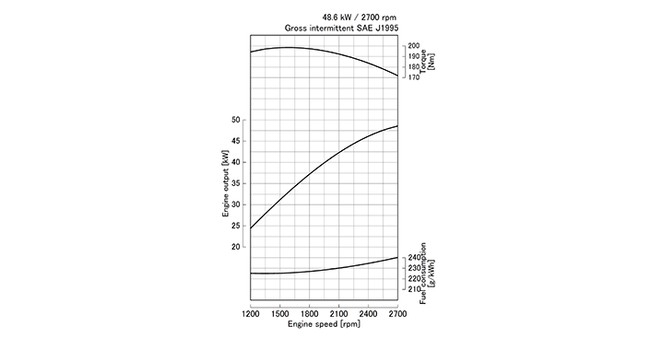

Performance Curves

Features

Engine Model	V2403-CR-TI-E4B
Emission Regulation	EPA/CARB Tier 4 + EU Stage IIIB + EU StageV
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and Stroke mm (in)	87.0 x 102.4 (3.43 x 4.031)
Displacement L (cu.in.)	2.434 (148.5)
Aspiration	Turbocharged + Turbo After Cooler
Aftertreatment	DOC
Rated Output / Speed^*1 kW (HP) / rpm	48.6 (65.2) / 2700
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	198.5 (146.4) /1600
Combustion System	Direct injection
Fuel System	Common rail system
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	646 x 540 x 728 (25.4 x 21.3 x 28.7)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	842 x 540 x 728 (33.1 x 21.3 x 28.7)
Dry Weight kg (lb)	232 (511)

Specifications are subject to change without notice.

DOC: Diesel Oxidation Catalyst

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine

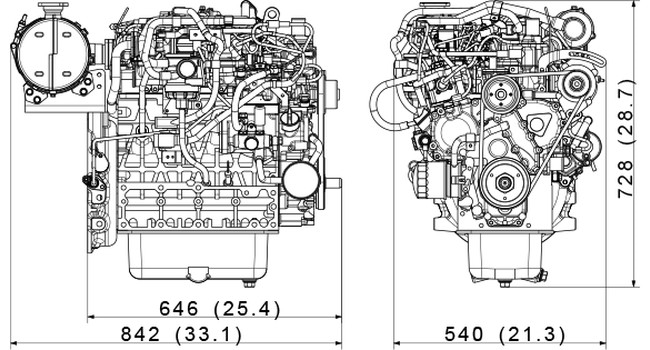

Dimensions
