DIESEL

V2003-M-E3B

Rated Power (kW): 32.6
Speed (rpm): 2800
Emission: EPA Tier 4, CARB Tier 4, EU Stage IIIA
Kubota 03 Series

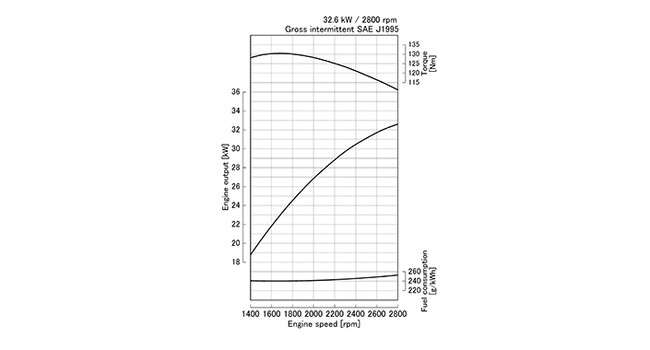

Performance Curves

Features

Engine Model	V2003-M-E3B
Emission Regulation	EPA/CARB interim Tier 4 level + EU Stage IIIA
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and Stroke mm (in)	83.0 x 92.4 (3.27 x 3.64)
Displacement L (cu.in.)	1.999 (122.0)
Aspiration	Naturally aspirated
Aftertreatment	-
Rated Output / Speed^*1 kW (HP) / rpm	32.6 (43.7) / 2800
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	130.3 (96.10) / 1600
Combustion System	Indirect injection
Fuel System	In-line pump
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	642 x 495 x 679 (25.3 x 19.5 x 24.9)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	180 (397)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine

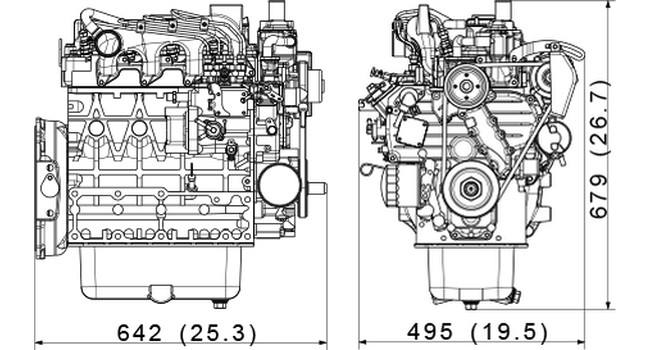

Dimensions
