V2403-M-DI-BG
Home Industrial Engines V2403-M-DI-BG

V2403-M-DI-BG

DIESEL
V2403-M-DI-BG
V2403-M-DI-BG
V2403-M-DI-BG
V2403-M-DI-BG
  • Rated Power (kW): 26.6
  • Speed (rpm): 1800
  • Kubota 03 Series
Contact Us
Features
Engine Model V2403-M-DI-BG
Emission Regulation -
Type Vertical, water cooled 4-cycle DI diesel engine
Cylinders 4
Bore and Stroke
mm (in)		 87.0 × 102.4 (3.43 × 4.031)
Displacement
L (cu.in.)		 2.434 (148.5)
Aspiration Naturally Aspirated
Aftertreatment -
Stand-by output / speed*1
kW (HP) / rpm		 26.6 (35.7) / 1800
Continuous output / speed*2
kW (HP) / rpm		 24.8 (33.3) / 1800
Combustion System Direct Injection
Fuel System In-line pump

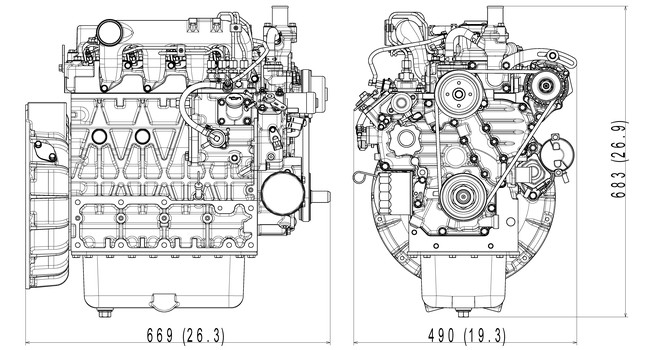

Length x Width x Height*3
(Without Aftertreatment Unit)
mm (in)		 669 × 490 × 683 (26.3 × 19.3 × 26.9)
Length x Width x Height*4
(With Aftertreatment Unit)
mm (in)		 -
Dry Weight
kg (lb)		 204 (450)


Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.



*1: SAE J1349
*2: Exclude cooling fan
