D1803-CR-E4B - Altınboğa

DIESEL

D1803-CR-E4B

Rated Power (kW): 28.0
Speed (rpm): 2700
Emission: EPA Tier 4, CARB Tier 4, EU Stage IIIA
Kubota 03 Series

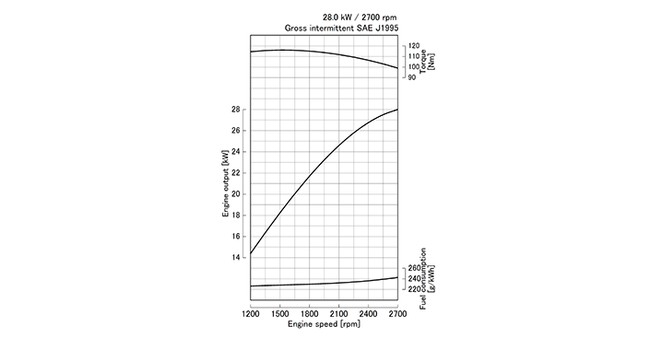

Performance Curves

Features

Engine Model	D1803-CR-E4B
Emission Regulation	EPA/CARB Tier 4 + EU Stage IIIA
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	3
Bore and Stroke mm (in)	87.0 x 102.4 (3.43 x 4.031)
Displacement L (cu.in.)	1.826 (111.4)
Aspiration	Naturally aspirated
Aftertreatment	DOC + DPF
Rated Output / Speed^*1 kW (HP) / rpm	28.0 (37.5) / 2700
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	115.8 (85.4) / 1600
Combustion System	Direct injection
Fuel System	Common rail system
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	551 x 536 x 711 (21.7 x 21.1 x 28.0)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	746 x 536 x 721 (29.4 x 21.1 x 28.4)
Dry Weight kg (lb)	185 (407)

Specifications are subject to change without notice.

DOC: Diesel Oxidation Catalyst

DPF: Diesel Particulate Filter

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine

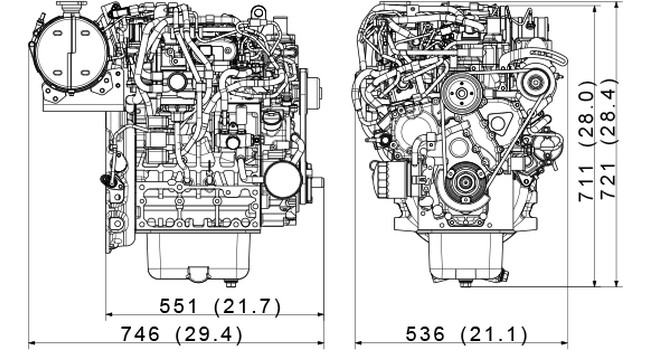

Dimensions
