V1505-E3B - Altınboğa

DIESEL

V1505-E3B

Rated Power (kW): 26.5
Speed (rpm): 3000
Emission: EPA Tier 4, CARB Tier 4, EU Stage IIIA
Kubota 05 Series

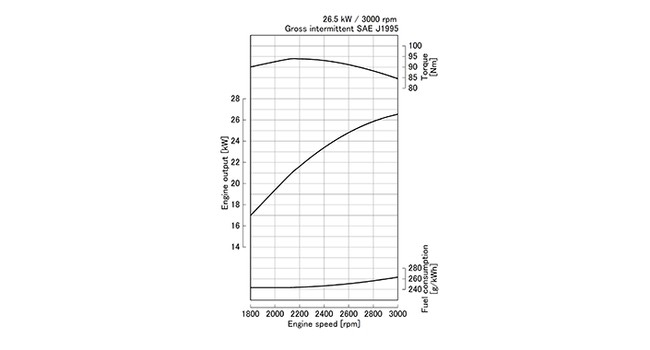

Performance Curves

Features

Engine Model	V1505-E3B
Emission Regulation	EPA/CARB interim Tier 4 level + EU Stage IIIA
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and Stroke mm (in)	78.0 x 78.4 (3.07 x 3.09)
Displacement L (cu.in.)	1.498 (91.41)
Aspiration	Naturally aspirated
Aftertreatment	-
Rated Output / Speed^*1 kW (HP) / rpm	26.5 (35.5) / 3000
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	93.9 (69.3) / 2200
Combustion System	Indirect injection
Fuel System	In-line pump
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	565 x 396 x 607 (22.2 x 15.6 x 23.9)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	110 (243)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine

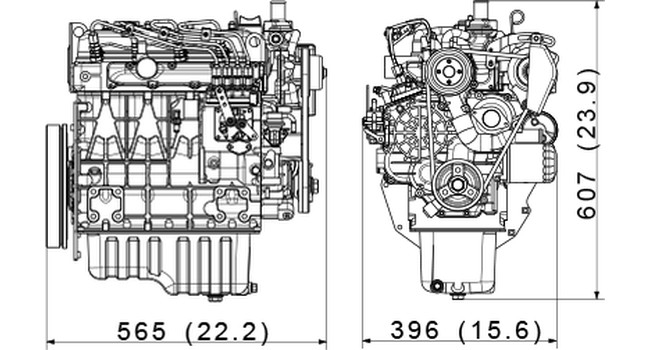

Dimensions
