D902-E3B - Altınboğa

DIESEL

D902-E3B

Rated Power (kW): 18.5
Speed (rpm): 3600
Emission: EPA Tier 4, CARB Tier 4
Kubota Super Mini Series

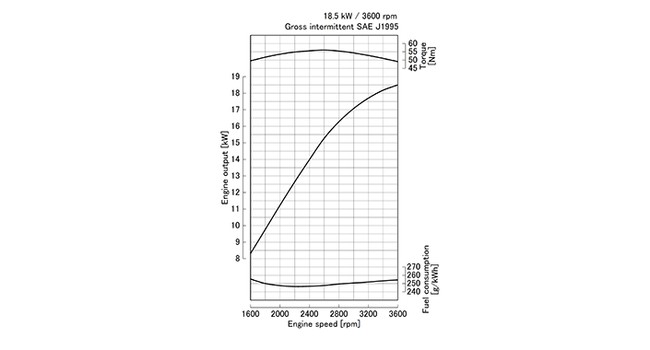

Performance Curves

Features

Engine Model	D902-E3B
Emission Regulation	EPA/CARB Tier 4 level
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	3
Bore and Stroke mm (in)	72.0 x 73.6 (2.83 x 2.90)
Displacement L (cu.in.)	0.898 (54.80)
Aspiration	Naturally aspirated
Aftertreatment	-
Rated Output / Speed^*1 kW (HP) / rpm	18.5 (24.8) / 3600
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	56.1 (41.4) / 2600
Combustion System	Indirect injection
Fuel System	In-line pump
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	434 x 401 x 544 (17.1 x 15.8 x 21.4)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	72 (159)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine

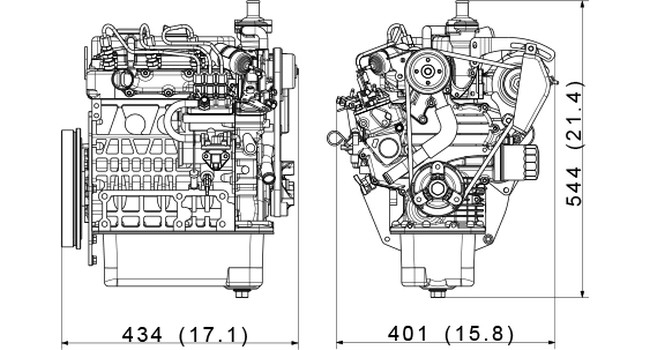

Dimensions
