DIESEL

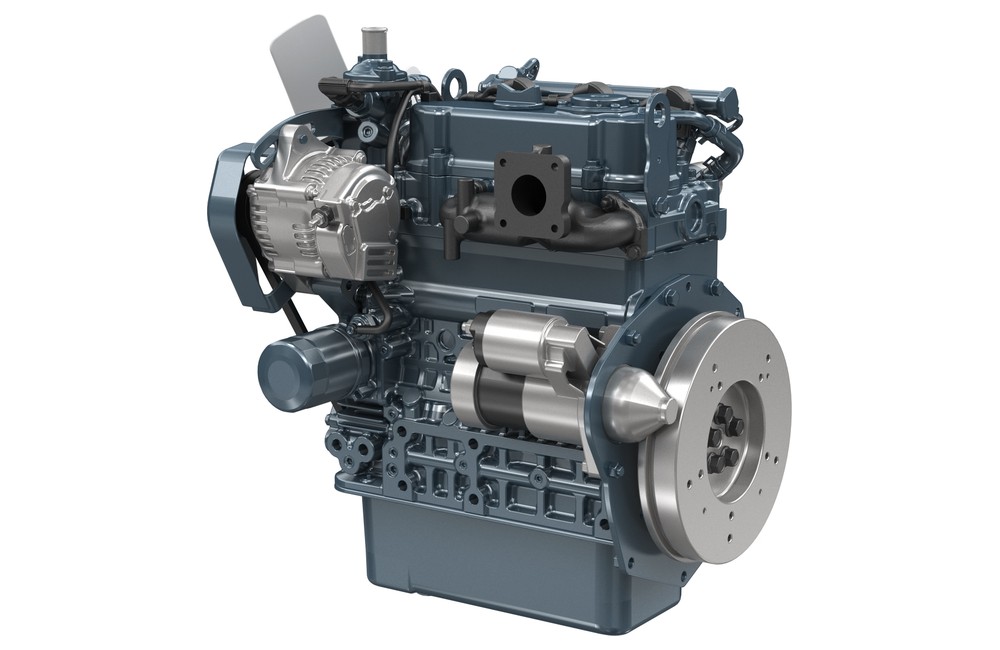

D902-K-E4

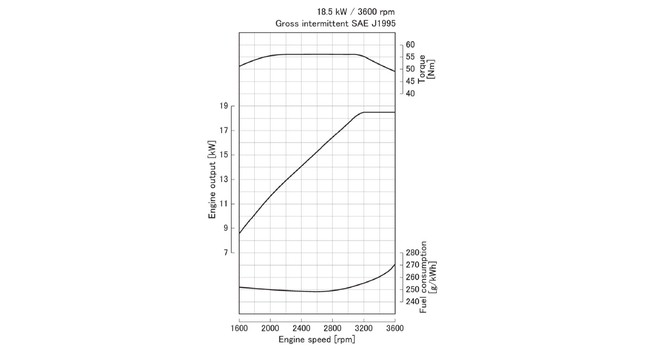

Performance Curves

Features

Engine Model	D902-K-E4
Emission Regulation	EPA/CARB Tier4 + EU Stage V + China NR IV
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	3
Bore and Stroke mm (in)	72.0 x 73.6 (2.83 x 2.90)
Displacement L (cu.in.)	0.898 (54.80)
Aspiration	Naturally aspirated
Aftertreatment	-
Rated Output / Speed^*1 kW (HP) / rpm	18.5 (24.8) / 3600
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	56.1 (41.4) / 2600
Combustion System	Indirect Injection
Fuel System	TVCR
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	434 × 389 × 544 (17.1 × 15.3 × 21.4)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	72 (159)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

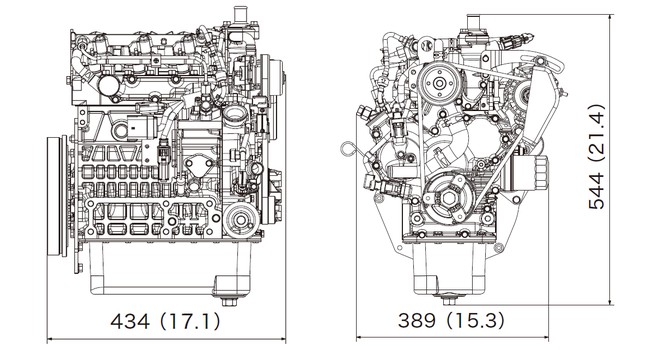

Dimensions
