D1703-M-DI-E4B - Altınboğa

DIESEL

D1703-M-DI-E4B

Rated Power (kW): 18.5
Speed (rpm): 2200
Emission: EPA Tier 4, CARB Tier 4, EU Stage V, India BS V
Kubota 03 Series

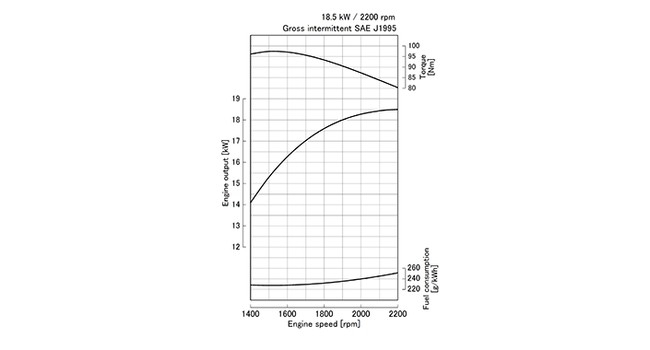

Performance Curves

Features

Engine Model	D1703-M-DI-E4B
Emission Regulation	EPA/CARB Tier 4 (NRTC/NTE test mode) + EU Stage V + India BS V
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	3
Bore and Stroke mm (in)	87.0 x 92.4 (3.43 x 3.64)
Displacement L (cu.in.)	1.647 (100.5)
Aspiration	Naturally aspirated
Aftertreatment	-
Rated Output / Speed^*1 kW (HP) / rpm	18.5 (24.8) / 2200
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	97.4 (71.8) / 1500
Combustion System	Direct injection
Fuel System	In-line pump
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	547 x 495 x 679 (21.5 x 19.5 x 26.7)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	148 (326)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine

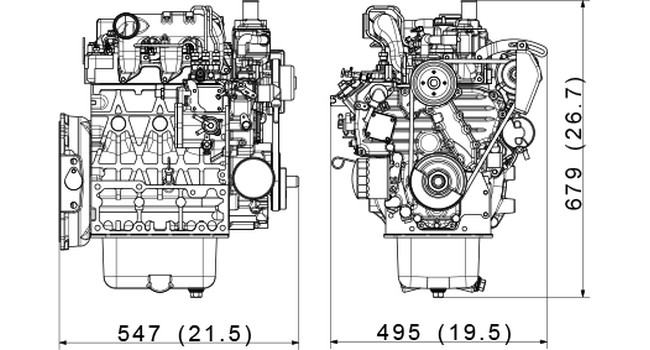

Dimensions
