V3800-CR-TE5 - Altınboğa | Albo Marin

DIESEL

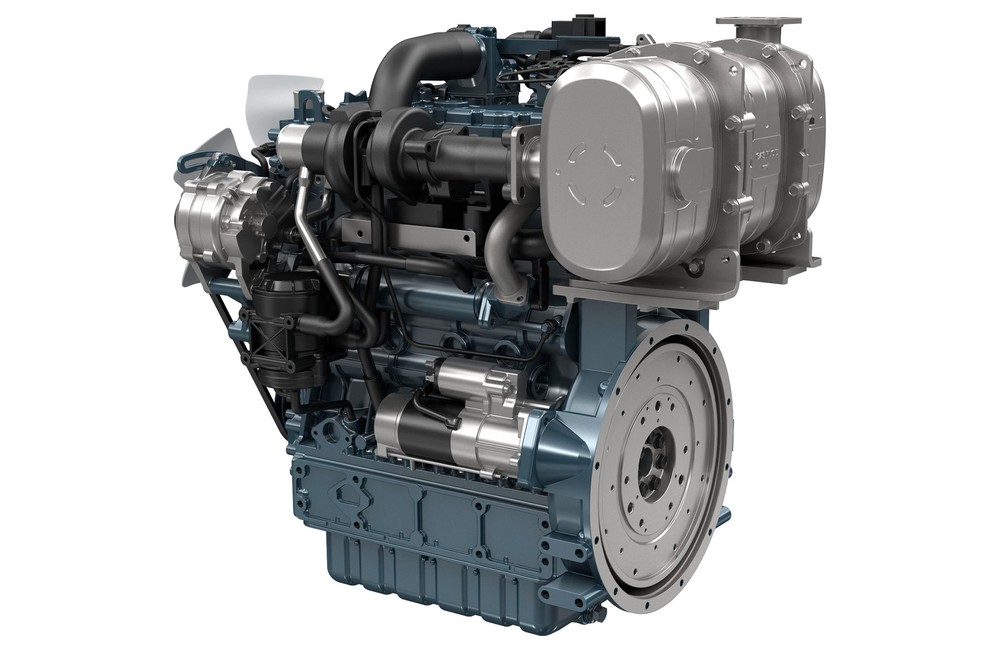

V3800-CR-TE5

V3800-CR-TE5

Rated Power (kW): 55.4
Speed (rpm): 2200
Emission: EU Stage V, India BS V
Kubota V3 Series

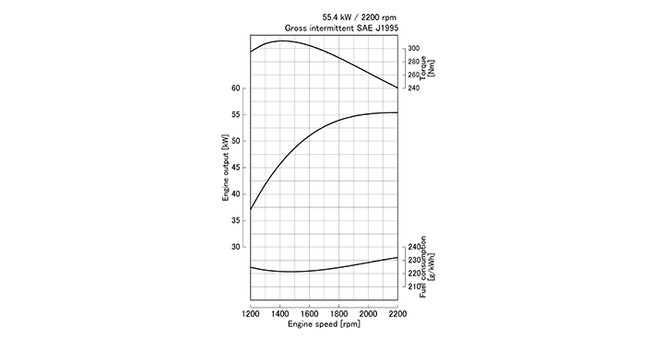

Performance Curves

V3800-CR-TE5

Features

Engine Model	V3800-CR-TE5
Emission Regulation	EU Stage V + India BS V
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and Stroke mm (in)	100.0 x 120.0 (3.937 x 4.724)
Displacement L (cu.in.)	3.769 (230.0)
Aspiration	Turbocharged
Aftertreatment	DOC + DPF
Rated Output / Speed^*1 kW (HP) / rpm	55.4 (74.3) / 2200
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	310.0 (228.6) / 1500
Combustion System	Direct injection
Fuel System	Common rail system
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	699 x 581 x 853 (27.5 x 22.9 x 33.6)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	844 x 581 x 853 (33.2 x 22.9 x 33.6)
Dry Weight kg (lb)	325 (717)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1995 gross intermittent
*2: Exclude cooling fan, include aftertreatment unit on engine
*3: Exclude cooling fan, aftertreatment unit

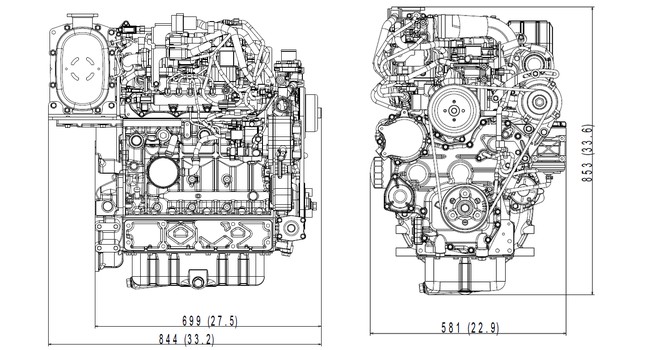

Dimensions

V3800-CR-TE5
