DIESEL

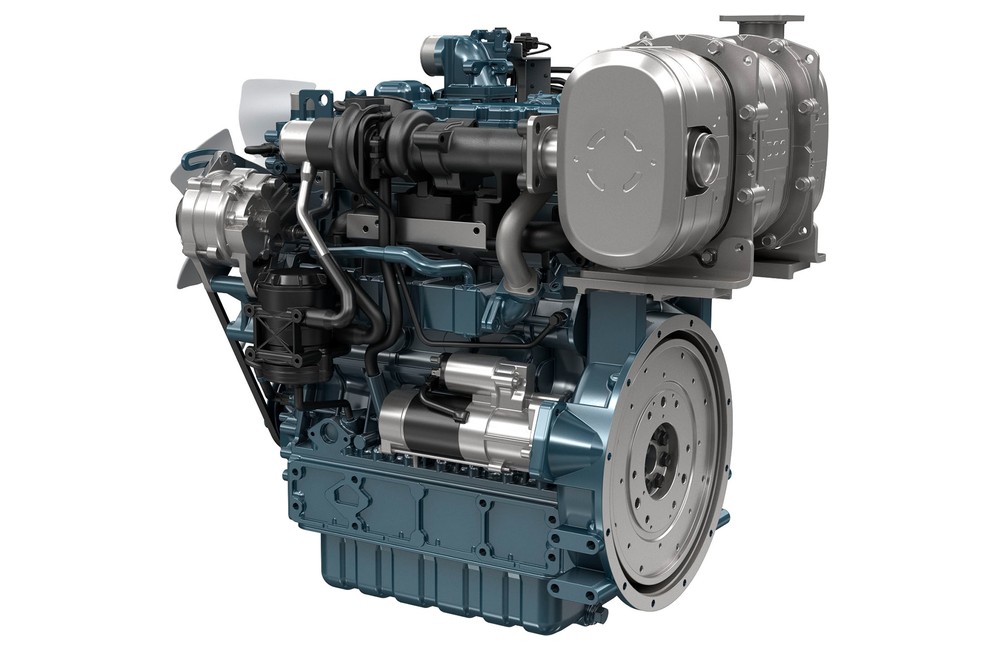

V3800-TIE4B

Rated Power (kW): 55.4
Speed (rpm): 2200
Emission: EPA Tier 4, CARB Tier 4, EU Stage IIIB
Kubota V3 Series

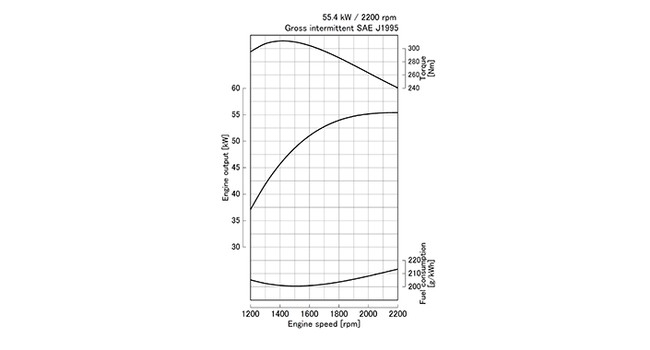

Performance Curves

Features

Engine Model	V3800-TIE4B
Emission Regulation	EPA/CARB Tier 4 + EU Stage IIIB
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and Stroke mm (in)	100.0 x 120.0 (3.937 x 4.724)
Displacement L (cu.in.)	3.769 (230.0)
Aspiration	Turbocharged + Turbo After Cooler
Aftertreatment	DOC
Rated Output / Speed^*1 kW (HP) / rpm	55.4 (74.3) / 2200
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	310.0 (228.7) / 1500
Combustion System	Direct injection
Fuel System	Common rail system
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	699 x 617 x 837 (27.5 x 24.3 x 33.0)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	845 x 617 x 852 (33.3 x 24.3 x 33.5)
Dry Weight kg (lb)	324 (714)

Specifications are subject to change without notice.

DOC: Diesel Oxidation Catalyst

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine

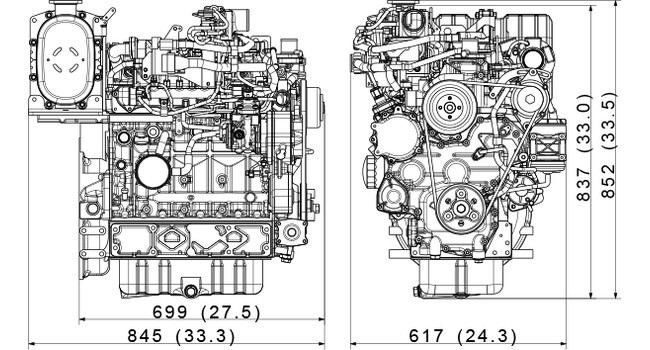

Dimensions
