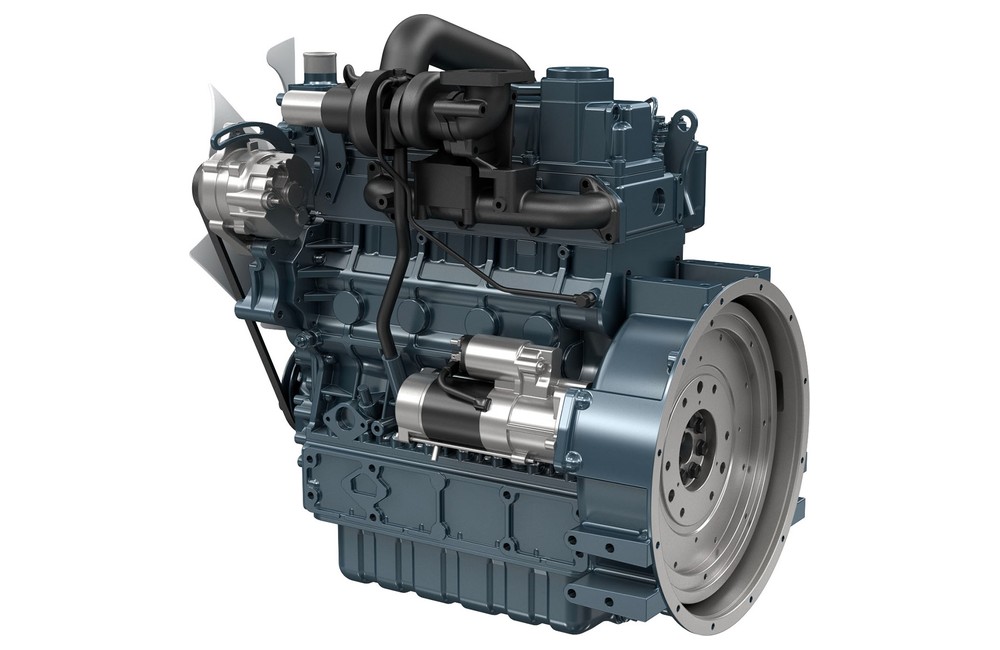

V3600-T-E3-BG - Altınboğa

DIESEL

V3600-T-E3-BG

Rated Power (kW): 43.1
Speed (rpm): 1800
Emission: EPA Tier 4, CARB Tier 4
Kubota BG Series

Features

Engine Model	V3600-T-E3-BG
Emission Regulation	EPA/CARB interim Tier 4 level
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and Stroke mm (in)	98.0 x 120.0 (3.86 x 4.724)
Displacement L (cu.in.)	3.620 (220.9)
Aspiration	Turbocharged
Aftertreatment	-
Stand-by output / speed^*1 kW (HP) / rpm	43.1 (57.8) / 1800
Continuous output / speed^*2 kW (HP) / rpm	39.2 (52.6) / 1800
Combustion System	Indirect injection
Fuel System	In-line pump

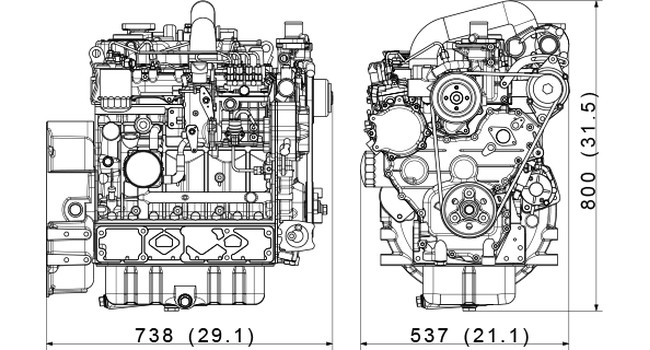

Length x Width x Height^*3 (Without Aftertreatment Unit) mm (in)	738 x 537 x 800 (29.1 x 21.1 x 31.5)
Length x Width x Height^*4 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	284 (626)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1349 net stand-by
*2: SAE J1349 net continuous
*3: Exclude cooling fan and exclude aftertreatment unit
*4: Exclude cooling fan and include aftertreatment unit on engine
