DIESEL

V3800-TIE5H

Rated Power (kW): 96.4
Speed (rpm): 2400
Emission: EPA Tier 4, CARB Tier 4, EU Stage V
Kubota V3 Series

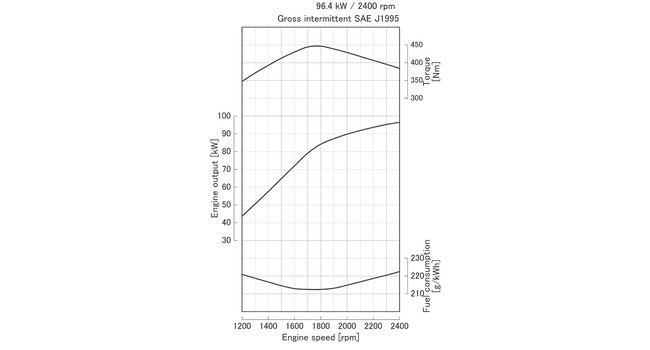

Performance Curves

Features

Engine Model	V3800-TIE5H
Emission Regulation	EPA/CARB Tier 4 + EU Stage V
Type	Vertical, water cooled 4-cycle DI diesel engine
Cylinders	4
Bore and Stroke mm (in)	100.0 × 120.0 (3.937 × 4.724)
Displacement L (cu.in.)	3.769 (230.0)
Aspiration	Turbocharged + Turbo After Cooler
Aftertreatment	DOC + DPF + SCR
Rated Output / Speed^*1 kW (HP) / rpm	96.4 (129.3) / 2400
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	446.4 (329.4) / 1800
Combustion System	Direct Injection
Fuel System	Common Rail System
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	720 × 617 × 872 (28.3 × 24.3 × 34.3)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	864 × 638 × 1226 (34.0 × 25.1 × 48.26)
Dry Weight kg (lb)	423 (933)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine

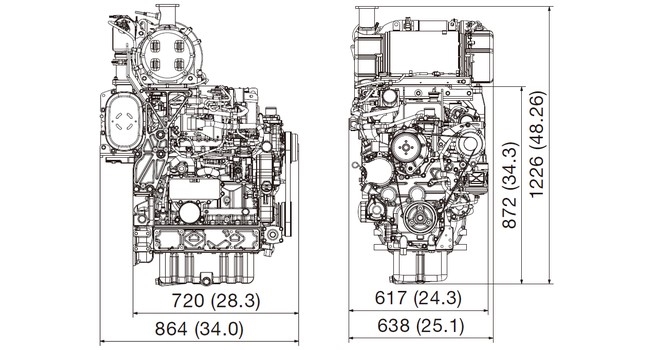

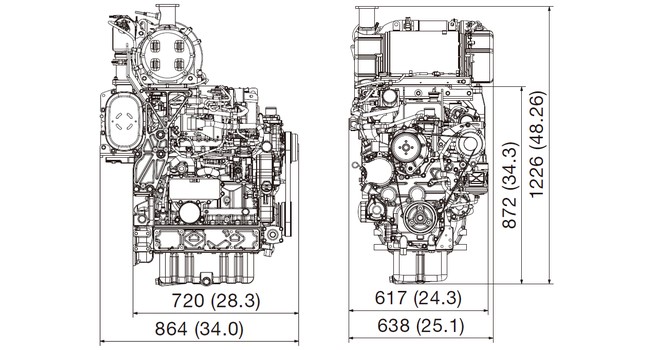

Dimensions
