WG3800-L-E3
Home Industrial Engines WG3800-L-E3

WG3800-L-E3

LPG
WG3800-L-E3
WG3800-L-E3
WG3800-L-E3
WG3800-L-E3
  • Rated Power (kW): 55.4
  • Speed (rpm): 2600
  • Emission: EPA Tier 2, CARB Tier 3, EU Stage V
  • Kubota WG Series
Contact Us
Features

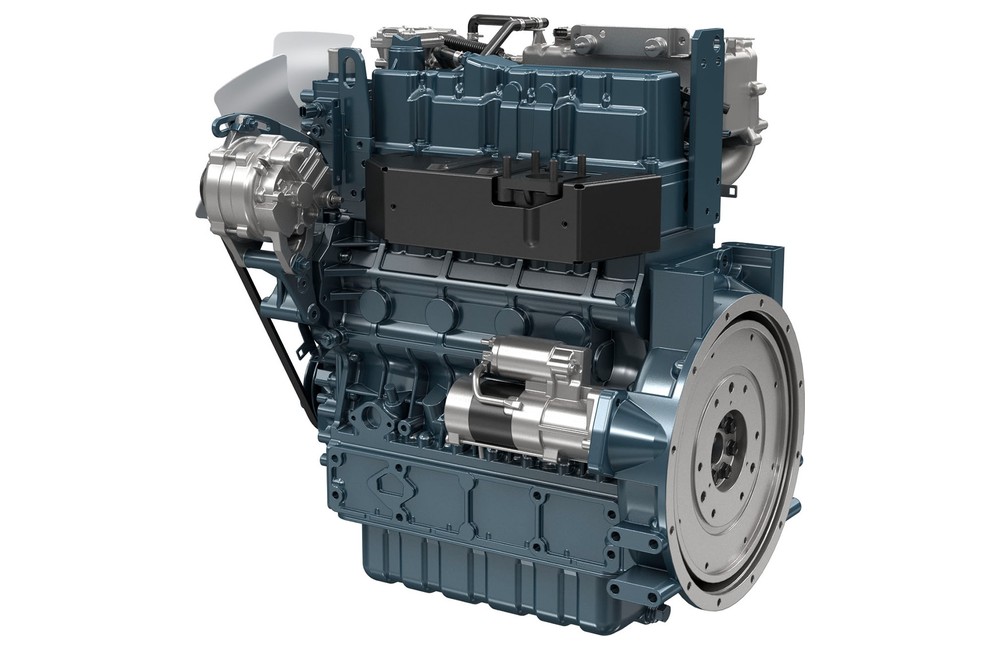

Engine Model WG3800-L-E3
Emission Regulation EPA Tier 2/CARB Tier 3 + EU Stage V
Type Vertical, water cooled 4-cycle spark ignited engine
Fuel LPG
Cylinders 4
Bore and Stroke
mm (in)		 100.0 x 120.0 (3.937 x 4.724)
Displacement
L (cu.in.)		 3.769 (230.0)
Aspiration Naturally aspirated
Aftertreatment Three-way catalyst
Rated Output / Speed*1
kW (HP) / rpm		 55.4 (74.3) / 2600
Maximum Torque / Speed
Nm (lb-ft) / rpm		 290.0 (213.9) / 1200

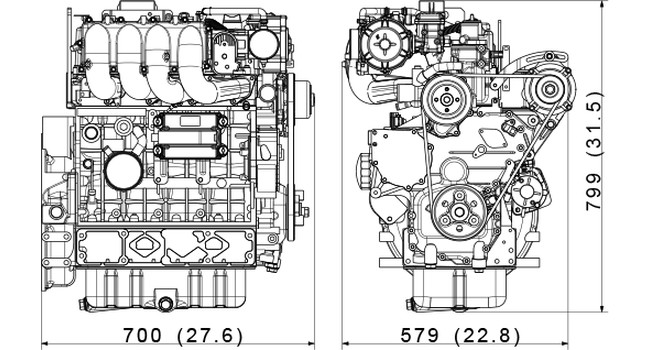

Length x Width x Height*1
mm (in)		 700 x 579 x 799 (27.6 x 22.8 x 31.5)
Dry Weight*2
kg (lb)		 288 (635)


Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

LPG: Commercial liquid propane gas only. Equivalent to propane HD-5 of GPA standard.

Natural gas: The performance shown is with Japanese standard natural gas.

The lower heating value: 9699 kcal/m3 (1090 BTU/ft3)



*1: SAE J1995 gross intermittent
*2: Exclude cooling fan, aftertreatment unit
