D1105-E3B - Altınboğa

DIESEL

D1105-E3B

Rated Power (kW): 21.7
Speed (rpm): 3600
Emission: EPA Tier 4, CARB Tier 4, EU Stage IIIA
Kubota 05 Series

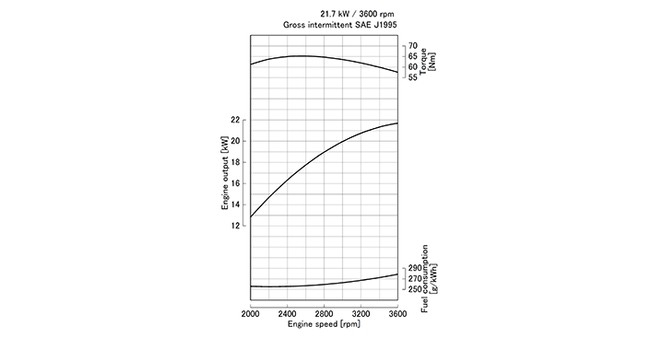

Performance Curves

Features

Engine Model	D1105-E3B
Emission Regulation	EPA/CARB interim Tier 4 level + EU Stage IIIA
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	3
Bore and Stroke mm (in)	78.0 x 78.4 (3.07 x 3.09)
Displacement L (cu.in.)	1.123 (68.53)
Aspiration	Naturally aspirated
Aftertreatment	-
Rated Output / Speed^*1 kW (HP) / rpm	21.7 (29.1) / 3600
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	65.2 (48.1) / 2600
Combustion System	Indirect injection
Fuel System	In-line pump
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	480 x 396 x 605 (18.9 x 15.6 x 23.8)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	93 (205)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine

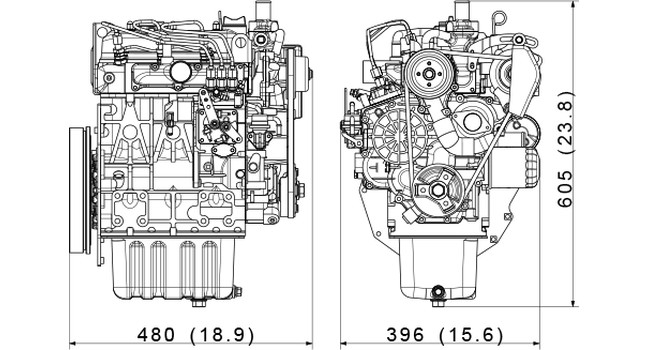

Dimensions
