D1703-M-BG2 - Altınboğa

DIESEL

D1703-M-BG2

Rated Power (kW): 15.0
Speed (rpm): 1500
Kubota BG Series

Features

Engine Model	D1703-M-BG2
Emission Regulation	-
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	3
Bore and Stroke mm (in)	87.0 x 92.4 (3.43 x 3.64)
Displacement L (cu.in.)	1.647 (100.5)
Aspiration	Naturally aspirated
Aftertreatment	-
Stand-by output / speed^*1 kW (HP) / rpm	15.0 (20.1) / 1500
Continuous output / speed^*2 kW (HP) / rpm	12.8 (17.2) / 1500
Combustion System	Indirect injection
Fuel System	In-line pump

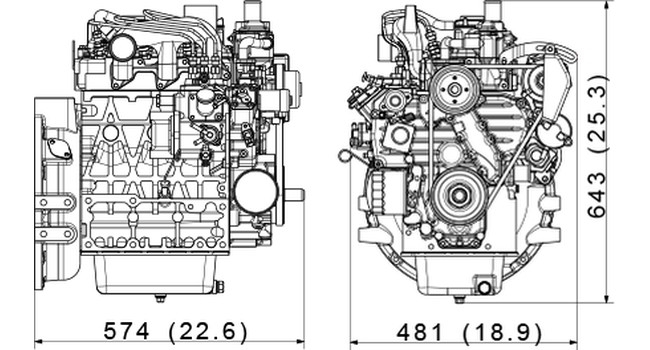

Length x Width x Height^*3 (Without Aftertreatment Unit) mm (in)	574 x 481 x 643 (22.6 x 18.9 x 25.3)
Length x Width x Height^*4 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	170 (374)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1349 net stand-by
*2: SAE J1349 net continuous
*3: Exclude cooling fan and exclude aftertreatment unit
*4: Exclude cooling fan and include aftertreatment unit on engine
