DIESEL

V5009-TIE5

V5009-TIE5

Rated Power (kW): 157.3
Speed (rpm): 2200
Emission: EPA Tier 4, CARB Tier 4, EU Stage V
Kubota 09 Series

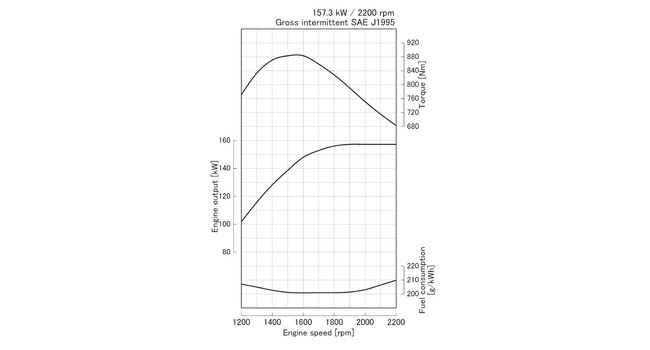

Performance Curves

V5009-TIE5

Features

Engine Model	V5009-TIE5
Emission Regulation	EPA/CARB Tier 4 + EU Stage V
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and Stroke mm (in)	110.0 x 132.0 (4.331 x 5.197)
Displacement L (cu.in.)	5.017 (306.2)
Aspiration	Turbocharged + Turbo After Cooler
Aftertreatment	DOC + DPF + SCR
Rated Output / Speed^*1 kW (HP) / rpm	157.3 (210.9) / 2200
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	883.1 (651.3) / 1500 - 1600
Combustion System	Direct injection
Fuel System	Common rail system
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	894 × 693 × 967(35.2 × 27.3 × 38.1)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	632 (1393)

Specifications are subject to change without notice.

DOC: Diesel Oxidation Catalyst

DPF: Diesel Particulate Filter

SCR: Selective Catalytic Reduction

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: Gross intermittent SAE J1995
*2: Excluded DPF muffler,SCR muffler, and cooling fan

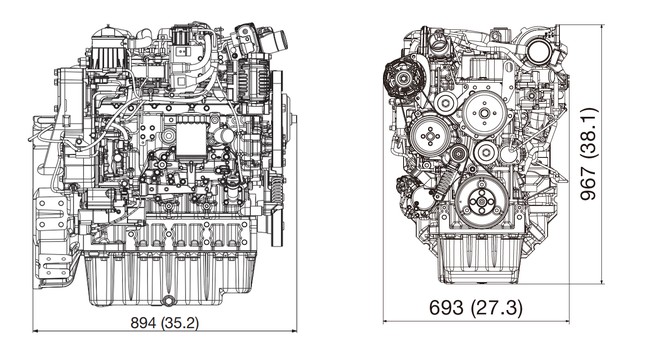

Dimensions

V5009-TIE5
