V3300-E2B - Altınboğa

DIESEL

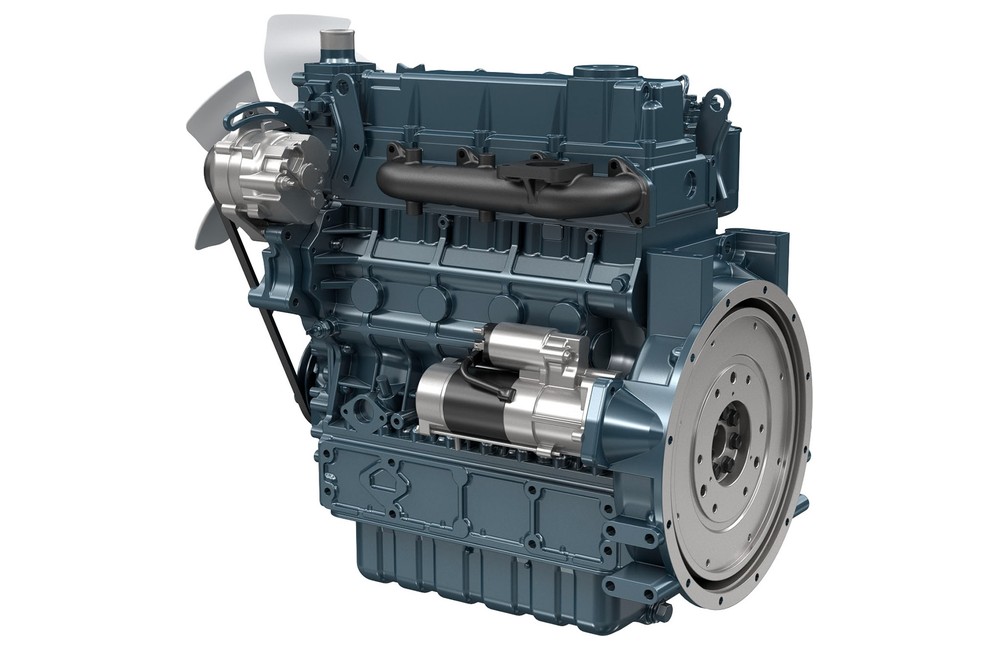

V3300-E2B

Rated Power (kW): 53.9
Speed (rpm): 2600
Emission: EPA Tier 2, CARB Tier 2, EU Stage II
Kubota V3 Series

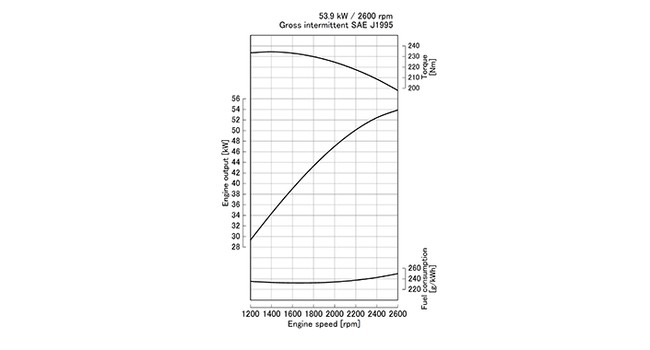

Performance Curves

Features

Engine Model	V3300-E2B
Emission Regulation	EPA/CARB Tier 2 level + EU Stage II level
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and Stroke mm (in)	98.0 x 110.0 (3.86 x 4.331)
Displacement L (cu.in.)	3.318 (202.5)
Aspiration	Naturally aspirated
Aftertreatment	-
Rated Output / Speed^*1 kW (HP) / rpm	53.9 (72.3) / 2600
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	234.4 (172.9) / 1400
Combustion System	Indirect injection
Fuel System	In-line pump
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	699 x 536 x 741 (27.5 x 21.1 x 29.2)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	241 (531)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine

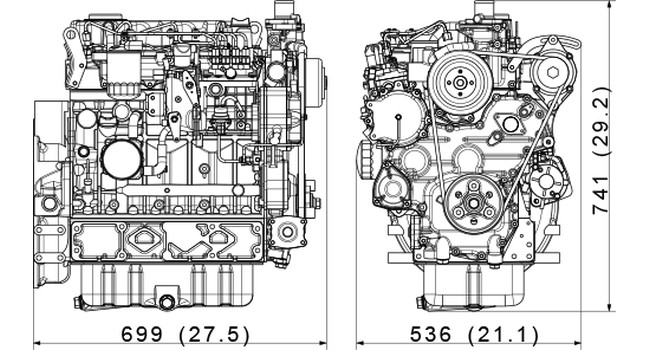

Dimensions
