V2203-M-E2B - Altınboğa

DIESEL

V2203-M-E2B

Rated Power (kW): 36.4
Speed (rpm): 2800
Emission: EPA Tier 2, CARB Tier 2, EU Stage IIIA
Kubota 03 Series

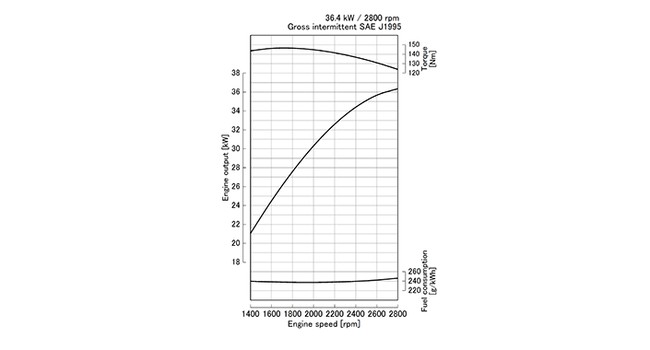

Performance Curves

Features

Engine Model	V2203-M-E2B
Emission Regulation	EPA/CARB Tier 2 level + EU Stage IIIA
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and Stroke mm (in)	87.0 x 92.4 (3.43 x 3.64)
Displacement L (cu.in.)	2.197 (134.1)
Aspiration	Naturally aspirated
Aftertreatment	-
Rated Output / Speed^*1 kW (HP) / rpm	36.4 (48.8) / 2800
Maximum Torque / Speed^*1 Nm (lb-ft) / rpm	146.5 (108.1) / 1700
Combustion System	Indirect injection
Fuel System	In-line pump
Length x Width x Height^*2 (Without Aftertreatment Unit) mm (in)	642 x 495 x 679 (25.3 x 19.5 x 24.9)
Length x Width x Height^*3 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	180 (397)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1995 gross intermittent
*2: Exclude cooling fan and exclude aftertreatment unit
*3: Exclude cooling fan and include aftertreatment unit on engine

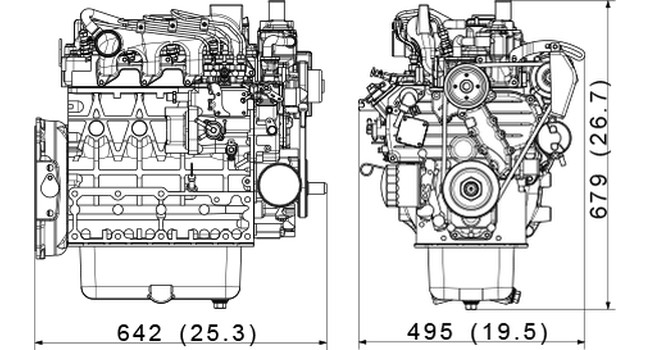

Dimensions
