V2403-CR-TE5-BG - Altınboğa

DIESEL

V2403-CR-TE5-BG

Rated Power (kW): 28.1
Speed (rpm): 1500
Emission: EU Stage V
Kubota BG Series

Features

Engine Model	V2403-CR-TE5-BG
Emission Regulation	EU Stage V
Type	Vertical, water cooled 4-cycle diesel engine
Cylinders	4
Bore and Stroke mm (in)	87.0 x 102.4 (3.43 x 4.031)
Displacement L (cu.in.)	2.434 (148.5)
Aspiration	Turbocharged
Aftertreatment	DOC + DPF
Stand-by output / speed^*1 kW (HP) / rpm	28.1 (37.7) / 1500
Continuous output / speed^*2 kW (HP) / rpm	25.5 (34.2) / 1500
Combustion System	Direct injection
Fuel System	Common Rail System

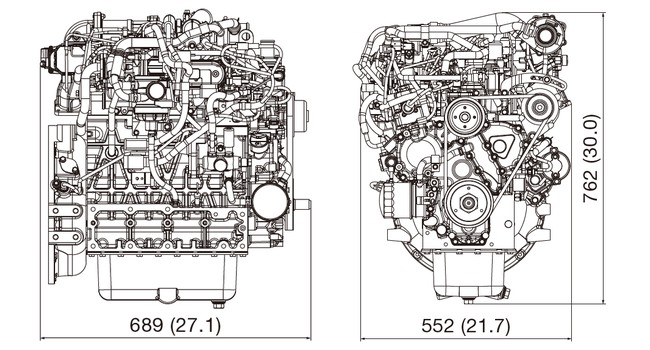

Length x Width x Height^*3 (Without Aftertreatment Unit) mm (in)	689 x 552 x 762 (27.1 x 21.7 x 30.0)
Length x Width x Height^*4 (With Aftertreatment Unit) mm (in)	-
Dry Weight kg (lb)	241 (531)

Specifications are subject to change without notice.

Dimensions and dry weight are according to Kubota's standard specification.

Dimensions and weight depend on completed specifications.

*1: SAE J1349 net stand-by
*2: SAE J1349 net continuous
*3: Exclude cooling fan and exclude aftertreatment unit
*4: Exclude cooling fan and include aftertreatment unit on engine
