| Engine Model | OC60-E2 |
| Emission Regulation | EPA/CARB Tier 2 level |
| Type | Vertical, liquid-cooled 4-cycle diesel engine |
| Fuel | Diesel |
| Cylinders | 1 |
Bore and Stroke mm (in) | 72.0 x 68.0 (2.83 x 2.68) |
Displacement L (cu.in.) | 0.276 (16.8) |
| Aspiration | Naturally aspirated |
| Aftertreatment | - |
Rated Output / Speed*1
kW (HP) / rpm | - |
Maximum Torque / Speed Nm (lb-ft) / rpm | 13.2 (9.7) / 2000 to 2600 |

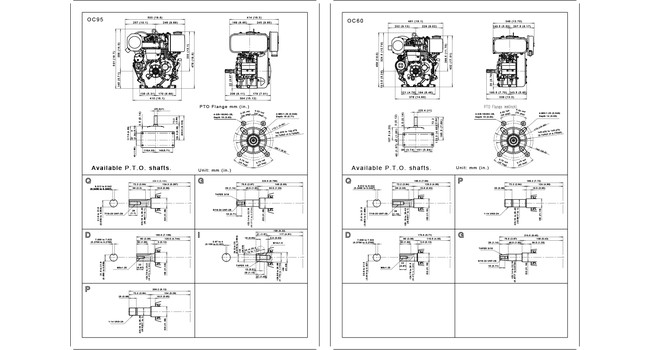

Length x Width x Height*1
mm (in) | 403 x 461 x 458 (15.9 x 18.1 x 18.0) |
Dry Weight*2
kg (lb) | 38 (84) |
Specifications are subject to change without notice.
Dry weight is according to Kubota's standard specification.
When specification varies, the weight will vary accordingly.
*1: SAE J1349 net intermittent
*2: Three Vortex Combustion System(TVCS)
